23068CAK/W33

Name: China 23068CAK/W33 Manufacturers Suppliers Factory - Customized 23068CAK/W33 Made in China
Brand: TUOCHENG Bearing
SKU: 288534483

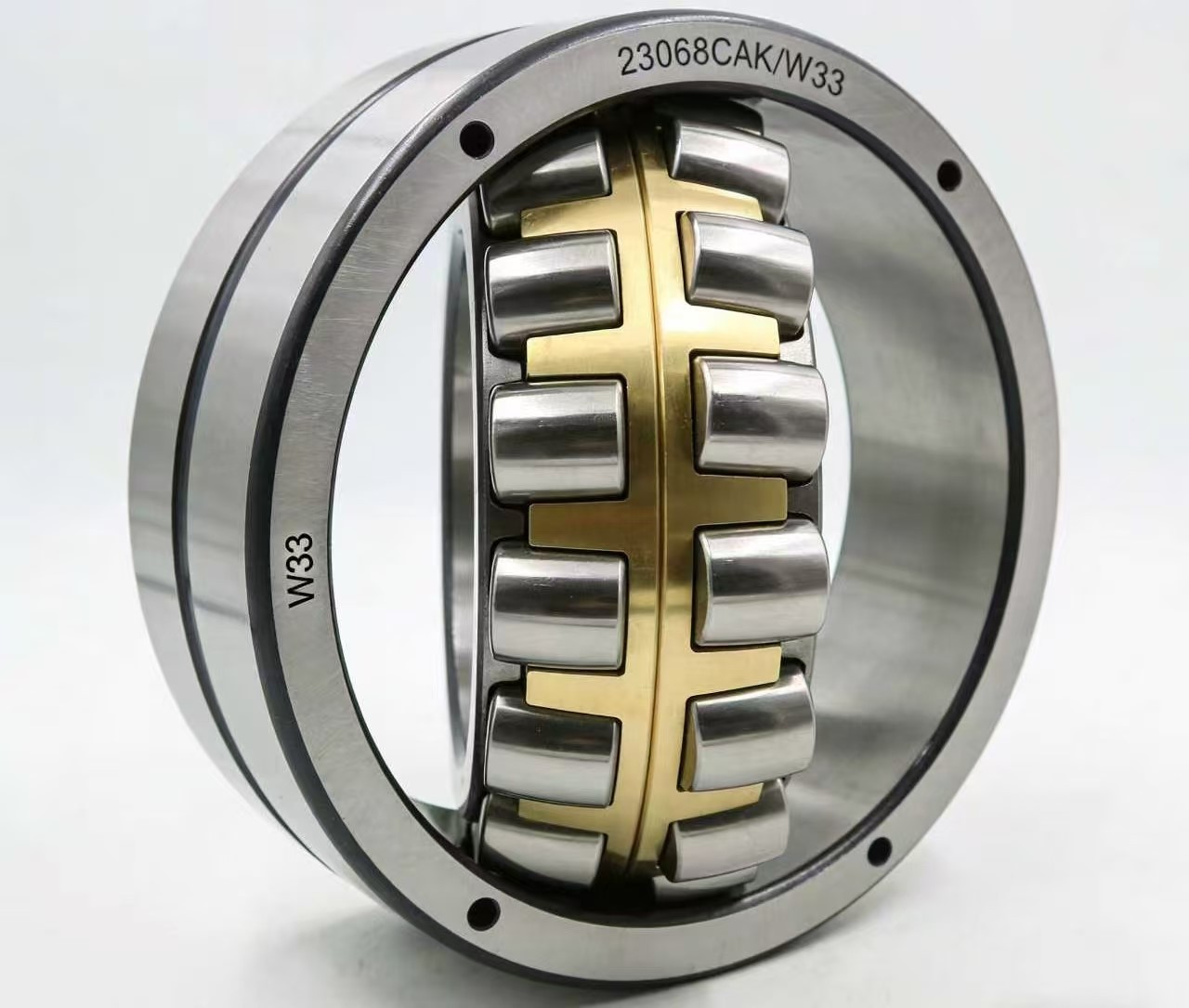

The core function of the 23068CAK/W33 bearing is to provide a key component support for heavy machinery, which is characterized by high reliability, high load-bearing capacity, and ease of maintenance. The inner diameter of this bearing is 340mm, the outer diameter is 520mm, and the width is 133mm. The inner hole has a 1:12 taper (K), which is convenient for matching with tapered shafts or locking sleeves, enabling quick installation and disassembly. The outer ring has a W33 annular lubrication groove and lubrication holes, supporting online lubrication. It can replenish lubricating grease without disassembling the bearing, reducing downtime for maintenance. The raceway and rolling elements are made of GCr15 high-carbon chromium bearing steel, which undergoes quenching and tempering treatment. They have high hardness and good wear resistance, capable of withstanding a basic rated static load of up to 4550kN and a basic rated dynamic load of 2810kN. The double-row self-aligning roller structure gives it an automatic alignment function, enabling it to adapt to the skew and misalignment of shaft systems, and is widely used in heavy-load, low-medium speed equipment such as metallurgy, mining, cement, and ports.

Send Inquiry

Product Introduction

Product Specification of 23068CAK/W33:

Inventory status: Usually dispatched within 48 hours
Inner diameter: 340mm
Outer diameter: 520mm
Width: 133mm
Material: Bearing steel
Lubrication: Grease
Static load: Basic rated static load is approximately 4550kN
Dynamic load: Basic rated dynamic load is approximately 2810kN
Speed limit: 530r/min
Country of origin: China
Current inventory: 118 pieces
This bearing can be used in the following industries:

metallurgical rolling mills, mining crushers, cement mills, port heavy cranes, large heavy-duty reducers, heavy construction machinery, power metallurgical equipment, wind power supporting equipment, etc. These are heavy-duty, low-medium speed, shaft systems prone to deviation and misalignment, and require convenient installation and disassembly, as well as support for online lubrication maintenance.

product-1280-1085

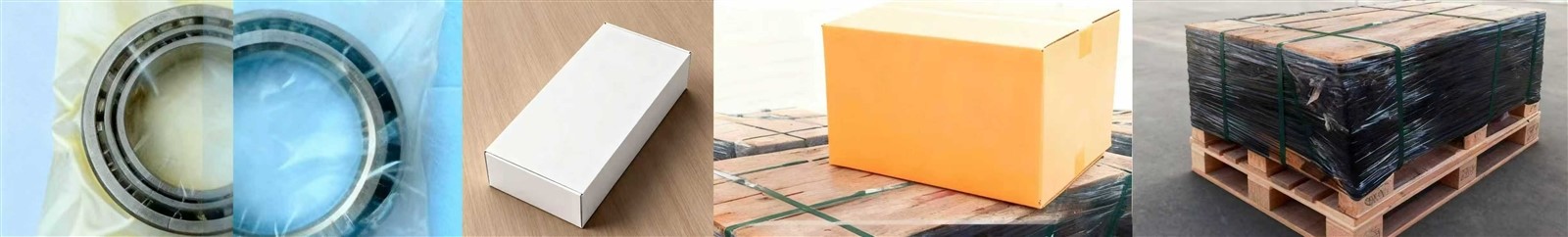

We offer two packaging options:
A: Industrial packaging + export carton + pallet / wooden crate
B: Commercial individual packaging - rust-proof packaging bag + cardboard box (white or customer-specified color) + export carton + pallet / wooden crate

product-4900-740
The numerous advantages of cooperating with Tuocheng Bearing Company:
You can purchase goods at discounted prices.
Delivery is prompt. Quality is guaranteed.
Acceptance of small orders is possible.
