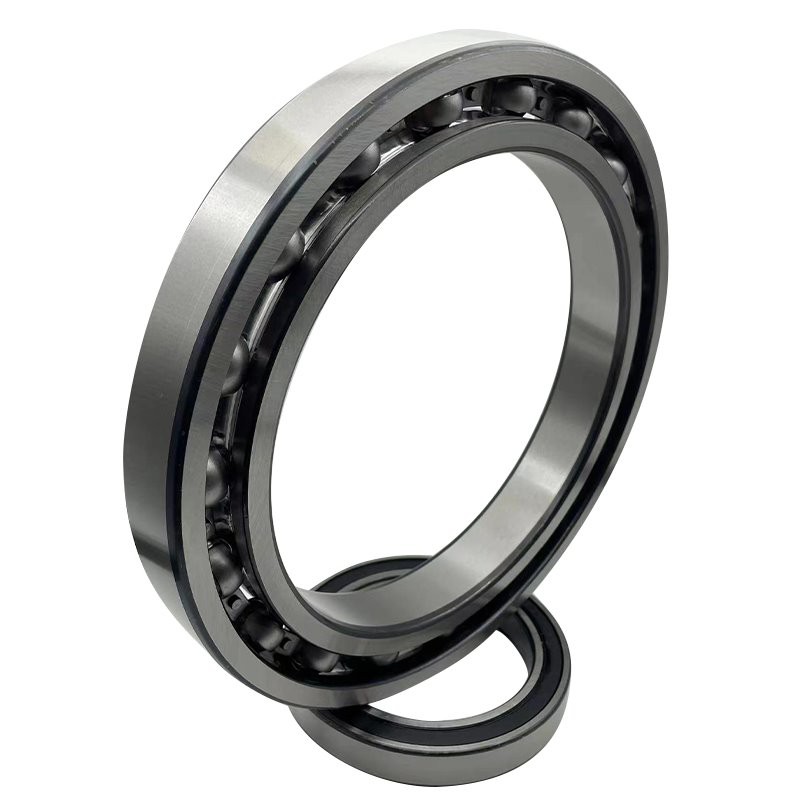

Thin Wall Bearings

Product Features

In order to obtain low friction torque, high rigidity, and good rotation accuracy of the bearing, steel balls with small outer diameters are used. The use of hollow shafts ensures light weight and space for wiring. Thin-walled bearings realize an extremely thin bearing section, and also realize miniaturization and weight reduction of products. The variety of products expands its range of uses.

Thin-walled 6700 and 6800 series have various dust cover forms, flanged forms, stainless steel forms, wide forms, etc., and the varieties are complete.

Thin-walled ring bearings are highly accurate, very quiet and have a high load-carrying capacity. These ball bearings are available in three designs and are extremely small and mostly square in cross-section. In these series, the cross section remains the same even for larger shaft diameters and bearing bores. These bearings are therefore called constant section. It is this feature that brings the standard ISO series

Thin-walled ring bearings are distinguished from conventional bearings. Therefore, it is possible to choose a larger cross section and use a bearing with a higher load capacity without having to change the shaft diameter. Thin-walled ring bearings can be designed to be extremely light and require very little space.

Deep groove ball bearings, four-point contact bearings, angular contact ball bearings

Thin-walled ring bearings can be deep groove ball bearings (C), four-point contact bearings (X), angular contact ball bearings (E). All of the above designs are available in different series. The series depends on the size of the cross section. The ball matches the series. Deep groove ball bearings can support axial and radial loads in both directions. Four-point contact bearings can support bidirectional

Axial loads as well as radial loads; therefore they behave in the same way as double row angular contact ball bearings. Angular contact ball bearings can match the optimum number of balls and have a contact angle of 30°. They support higher radial loads than deep groove ball bearings or four-point contact bearings, and can support axial loads originating from the same direction. For special needs,

Angular contact ball bearings are also available as matching bearings. Therefore, the rigidity and load-carrying capacity of these combinations are much higher than single-bearing products.
