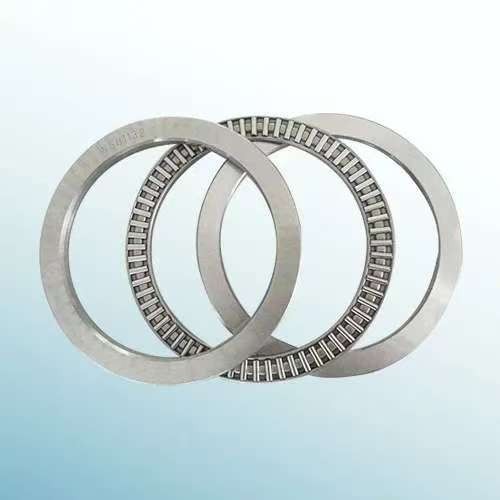

Needle Roller Thrust Bearing

Thrust needle roller bearings are compact products in the thrust bearing family, with thin-diameter needle rollers as their core load-bearing elements. Specifically designed for working conditions requiring "limited installation space + medium-low axial loads," they form multi-line contact between densely arranged needle rollers and raceways. Despite their extremely small axial dimensions (typically only 3-15mm in height), they achieve higher load density than thrust ball bearings of the same size. Meanwhile, they feature low friction and high rigidity, making them ideal for scenarios such as automotive gearboxes, household appliance motors, and precision instruments-where "space is limited but axial support is needed." They can transmit axial forces and ensure rotational accuracy within a millimeter-level space.

I. Product Positioning and Core Value

1. Market Positioning

As "experts in axial support for compact spaces," this product fills the market gap where ordinary thrust bearings (e.g., cylindrical or self-aligning roller bearings) have excessively large axial dimensions. Amid the trend of equipment miniaturization and lightweighting (such as micro-motors, smartphone gimbals, and automotive electronic shift mechanisms), when axial installation space is strictly limited (≤15mm) and medium-low axial loads (usually ≤50kN) need to be withstood, a single set of bearings can achieve the dual requirements of "small size + high load capacity" without sacrificing load-bearing performance or compressing the space of other components. It replaces the combined solution of "thin-type thrust ball bearings + gaskets," simplifying equipment structure and improving space utilization.

2. Core Value

Extreme Compactness for Space Saving: The axial height is only 1/3 to 1/2 that of thrust cylindrical roller bearings with the same load capacity, and the smallest model can have a height as low as 3mm, adapting to the space requirements of miniaturized equipment.

High Load Density and Excellent Performance: Needle rollers are densely arranged (3-5 times more than ordinary roller bearings), and multi-line contact disperses loads. The axial load capacity is 2-3 times higher than that of thrust ball bearings of the same size, with higher rigidity (deformation ≤0.01mm).

Low Friction for Medium-Low Speed Applications: The contact area between needle rollers and raceways is small, with a friction coefficient of only 0.001-0.003. Under medium-low speed conditions (rotational speed ≤3000r/min), it has low temperature rise and low energy consumption, making it suitable for scenarios sensitive to noise and energy consumption, such as household appliances and precision instruments.

II. Precision Structure and Design Highlights

1. Structural Composition (4 Core Components)

The structure of this product is optimized around "compactness + high load capacity," and the materials and processes of key components are designed for small size and high precision:

Shaft Washer (Tight Ring): Made of high-carbon chromium bearing steel (GCr15), it undergoes thin-type quenching (hardness HRC58-62) and ultra-precision grinding. Its inner bore forms an interference fit with the shaft, with a thickness of only 1-5mm. The end face is a high-precision flat surface (flatness ≤0.005mm), serving as a rotating support surface for needle rollers to ensure synchronous rotation with the shaft.

Housing Washer (Loose Ring): Adopting the same material and heat treatment process as the shaft washer, its outer circle forms a transition fit with the bearing housing, and its thickness matches that of the shaft washer. The end face is machined with needle roller guide grooves (some models integrate flanges), and the groove width is precisely matched with the needle roller diameter (clearance ≤0.01mm) to prevent needle rollers from falling off or shifting, ensuring stable rolling trajectories.

Needle Rollers: As core load-bearing elements, they have a thin-diameter and long cylindrical structure (typically 1-5mm in diameter and 5-15mm in length). The surface is polished (Ra ≤0.1μm) with a cylindricity of ≤0.002mm. Some models adopt a "hollow needle roller" design (to reduce weight and improve toughness), which are densely arranged between the shaft washer and housing washer to form a multi-line contact load-bearing structure.

Cage (for Some Models): Made of engineering plastics (e.g., PA66 + glass fiber) or stamped thin steel plates, it has a "comb-tooth" or "pocket" structure. Its function is to evenly separate needle rollers, avoiding friction and jamming between them. Especially under high-speed or vibration conditions, it can improve the operational stability of the bearing. For micro-models (height ≤5mm), due to space constraints, the cage is often omitted, and a "full-complement needle roller" design is adopted.

2. Design Highlights

Optimized Dense Arrangement of Needle Rollers: The diameter and quantity of needle rollers are matched through mechanical calculations to achieve the maximum number of contact lines (usually 8-15) within limited space. This ensures uniform load dispersion, prevents overload fracture of individual needle rollers, and reduces local wear of raceways.

Reinforced Thin Washers: The shaft washer and housing washer adopt a "thin and high-strength" design. Through special heat treatment processes (e.g., surface carburizing), the compressive strength of the washers reaches over 1800MPa despite their thickness of only 1-5mm, avoiding washer deformation or fracture caused by axial loads.

Multi-Structure Adaptation to Scenarios: Multiple structural forms are available, including "with cage," "full-complement needle rollers," "with flanges," and "without flanges." Models with flanges can limit axial movement of needle rollers, while full-complement needle roller models have 20%-30% higher load capacity than caged models, meeting the needs of different scenarios.

III. Product Series

This product covers 3 major series, adapting to full-range compact space requirements from micro to small size, and from low to medium load:

IV. Application Scenarios and Industrial Uses

Relying on the core advantages of "compact size + high load density," this product is widely used in miniaturized and lightweight equipment across multiple industries:

Automotive Industry:

Gearbox Synchronizers: Withstand axial forces (5-15kN) during gear shifting, with an axial height of only 5-8mm, adapting to the compact space inside the gearbox and ensuring smooth gear shifting without jamming.

Electric Power Steering Motors: Support the axial load of the motor rotor. Micro-models (H=3-5mm) adapt to the miniaturized design of motors, and their low-friction feature reduces steering energy consumption.

Consumer Electronics and Household Appliances:

Smartphone Gimbals/Camera Stabilizers: Micro AXK series (d=5-10mm, H=3-4mm) support the rotating shaft of gimbals, achieving stable rotation within a millimeter-level space and ensuring no image jitter.

Washing Machine Motors/Air Conditioner Compressors: NK series bearings adapt to the compact space of motor end caps, withstand axial runout forces (3-8kN) of motor rotors, and their low-friction design reduces energy consumption of household appliances.

Precision Instruments and Power Tools:

Laser Rangefinder Rotating Shafts: Full-complement needle roller models have high load density, providing axial support within a narrow housing and ensuring ranging accuracy (error ≤1mm).

Electric Screwdriver Spindles: NAK series double-row needle roller design withstands axial forces (8-12kN) during screw tightening. High rigidity ensures stable torque transmission and prevents spindle deformation.

Industrial Automation:

Small Conveyor Rollers: Adapt to the compact space of roller end caps, withstand axial component forces from roller self-weight and materials, and their low-friction feature extends the service life of rollers.

Robot Joint Micro-Motors: Micro thrust needle roller bearings (d=8mm, H=4mm) support the rotating shaft of joints, achieving precise rotation within limited space and adapting to the lightweight requirements of robots.

V. Summary of Product Advantages

Extreme Space Utilization: With a minimum axial height of only 3mm, it saves more than 50% of space compared to other thrust bearings with the same load capacity, perfectly adapting to the miniaturization and lightweight design trend of equipment.

Leading Load Density: Multi-line contact and dense needle roller design result in an axial load capacity 2-3 times higher than that of thrust ball bearings of the same size, enabling stable support of medium-low loads in small sizes.

Low Friction and Low Energy Consumption: With a friction coefficient of only 0.001-0.003, it has low temperature rise and low noise (≤50dB) under medium-low speed conditions, suitable for consumer electronics and household appliances sensitive to energy consumption and noise.

Wide Adaptability with Multi-Structure: From full-complement needle rollers to double-row caged models, it covers scenarios from micro to small size and low to medium load, allowing precise selection based on space and load requirements.

High Cost-Effectiveness: Simple structure with few components results in lower manufacturing costs than thrust roller bearings with complex structures. Meanwhile, it simplifies equipment assembly processes and reduces overall production costs.
